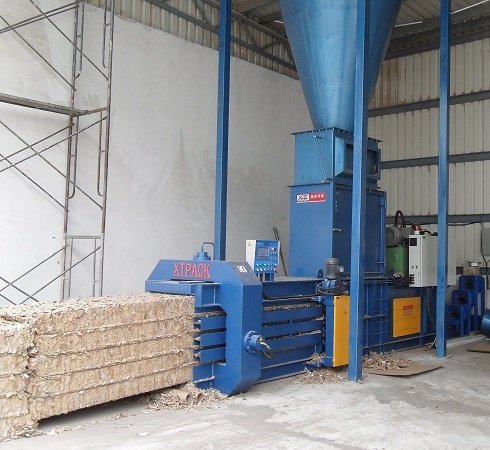

Small-sized Full Automatic Balers with Cyclone for Packaging Plants

¡¡

Usage

Specially used for recycling waste paper, cartons, cardboard trims/scraps etc. which are popular in packaging and corrugation industrial, as well as in printing plants etc.

Features

¡ñ¡¡ Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line
¡ñ¡¡ Photoelectric switch activates baler when charge box is full
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ Equipped with rapid automatic tying system, easy for cleaning and maintaining
¡ñ¡¡ Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
¡ñ¡¡ Automatic tension system ensures ¡°brick-like¡± bales on all loose materials
¡ñ¡¡ Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
¡ñ¡¡ Automatically detect and show the errors of the machine which improve the machine inspection efficiency
¡ñ¡¡ International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-200W5050-10 XTY-400W7575-20 XTY-400W7280-20 XTY-600W7585-25
Pressure 20tons 40tons 40tons 60tons
Main Motor Power 7.5kw 15kw 15kw 18.5kw
Cooling System air cooler / water cooler air cooler / water cooler air cooler / water cooler air cooler / water cooler
Cycle Time (unload) 19s 20s 20s 16s
Oil Reservoir 280L 540L 540L 600L
Number of Belting 3lines 3lines 4lines 4lines
Wire Size Ø2.4-2.7 Ø2.4-2.7 Ø2.4-2.7 Ø2.4-2.7
Feed Opening Size (L*W) 625*480mm 1200*720mm 1200*690mm 1200*720mm
Chamber Size (L*W*H) 900*500*500mm 1600*750*750mm 1600*720*800mm 1600*750*850mm
Bale Size (L*W*H, L is adjustable) L*500*500mm L*750*750mm L*720*800mm L*750*850mm
Bale Density £¨OCC£© 350-450kgs/m3 350-450kgs/m3 350-450kgs/m3 380-480kgs/m3
Throughput (30-60kgs/m3) 1-1.5tons/h 1.5-3tons/h 1.5-3tons/h 2.5-5tons/h
Machine Weight 3tons 7tons 7tons 8tons
Machine Overall Dimension 3600*2500*1650mm 5950*3200*2500mm 5950*3200*2500mm 6100*3250*2500mm
Feeding Device cyclone / conveyor cyclone / conveyor cyclone / conveyor cyclone / conveyor
